ELM327 USB OBD2 Automobile Diagnosis Equipment for ford CH340 Version Neutral Standard with Switch Brush Hide







This Product Is Aimed at Domestic Individual Retail Buyers. If You Do Not Operate for Your Own Reasons Or Cannot Use Your Own Model, You Cannot Return the Product for Refund. Please Consult the Seller before Purchasing, Carefully and Blindly Place an Order for Selfie, thank You for Your Cooperation.

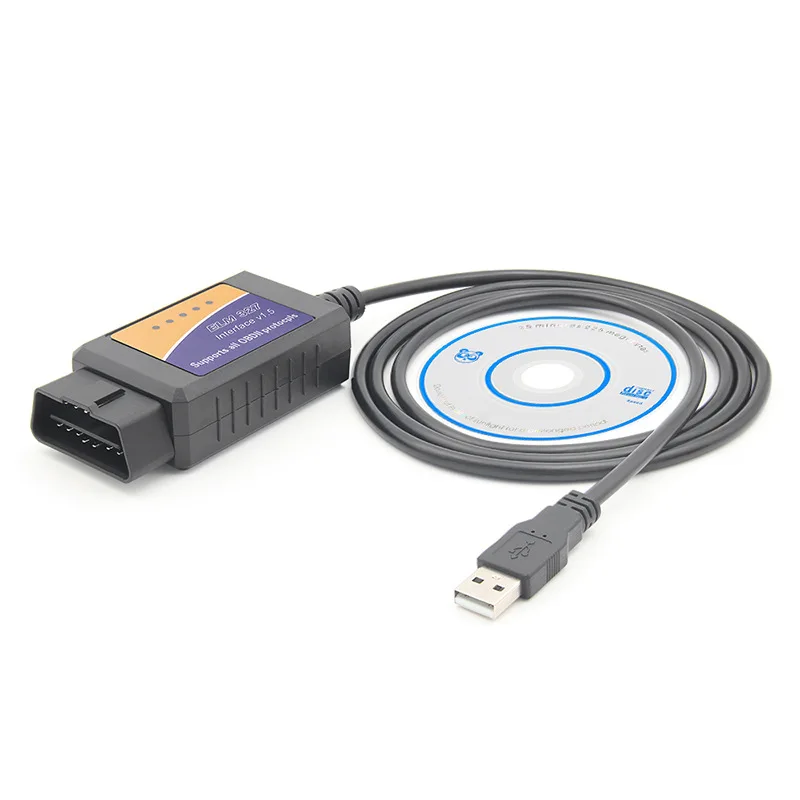

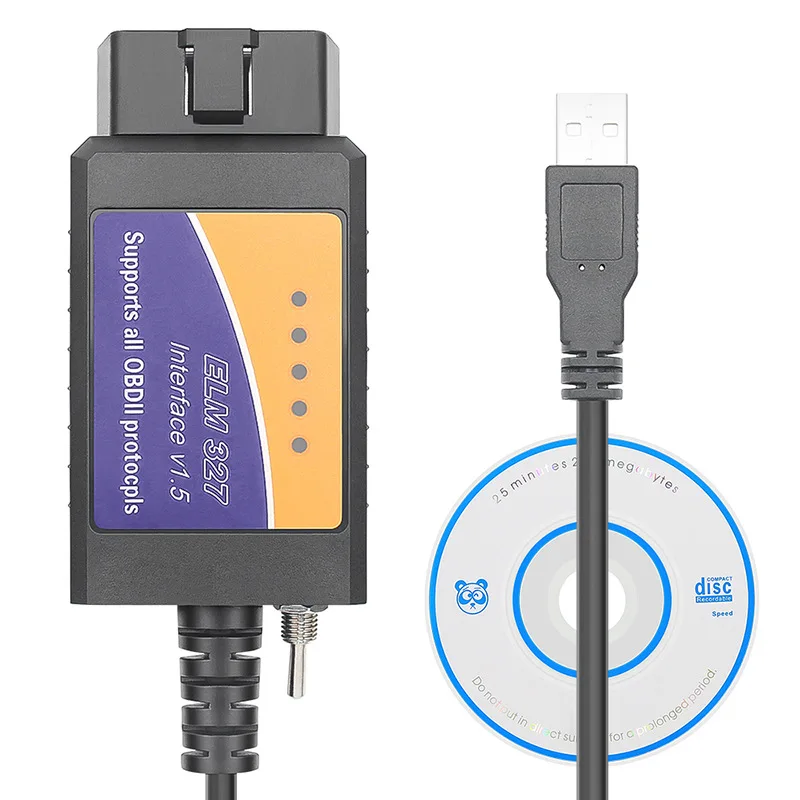

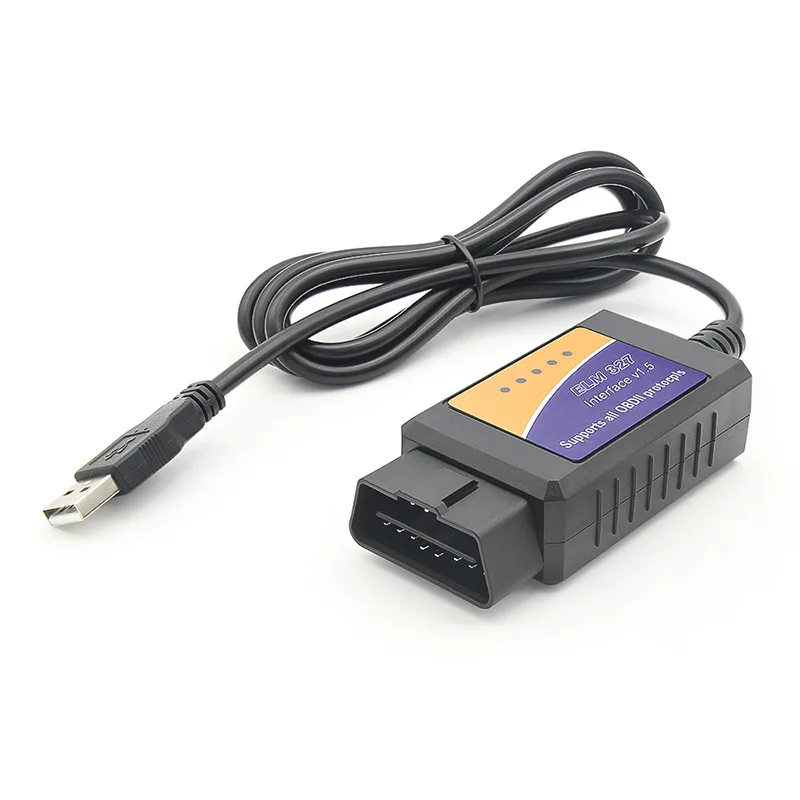

ELM327 USB With Switch Diagnostic Cable





Top 4 Reasons to Get Plastic ELM327 USB With Switch Diagnostic Cable:



1: Latest ELM327 USB With Switch includes PIC18F25K80 and CH340T.





2: Manufactured modification to include a switch to connect to different CAN buses, MS CAN bus and HS CAN bus.





3: Designed for FORScan software, compatible with software venders; for FORScan, for Elmconfig, for FF2 and for FoCCCus, plus more.





4: Support Windows 7 and WIN10.





OBDII Protocolls:



SAE J1850 PWM (41.6Kbaud)



SAE J1850 VPW (10.4Kbaud)



ISO9141-2 (5 days ago, 10.4kbaud)



ISO14230-4 KWP (5 baud init, 10.4 Kbaud)



ISO14230-4 KWP (fast init, 10.4 Kbaud)



ISO15765-4 CAN (11bit ID, 500 Kbaud)



ISO15765-4 CAN (29bit ID, 500 Kbaud)



ISO15765-4 CAN (11bit ID, 250 Kbaud)



ISO15765-4 CAN (29bit ID, 250 Kbaud)



SAE J1939 CAN (29bit ID, 250*Kbaud)



CAN (11*bit ID, 125*Kbaud)



CAN (11*bit ID, 50*Kbaud)







Product Description



Introduction:



With the cable and the one of the supported software vendors you can detected modules which are not visible for regular



OBD2 scanners. This includes showing you trouble codes, PIDs, running tests and services procedures which are never displayed by other OBD2 scanners and a standard ELM327 USB With Switch.







Basic Features:



Reset fault /trouble codes / parameter ids (PIDs)



Change car configuration data



Run tests



Services procedures



Program certain models







Pin Configurations:

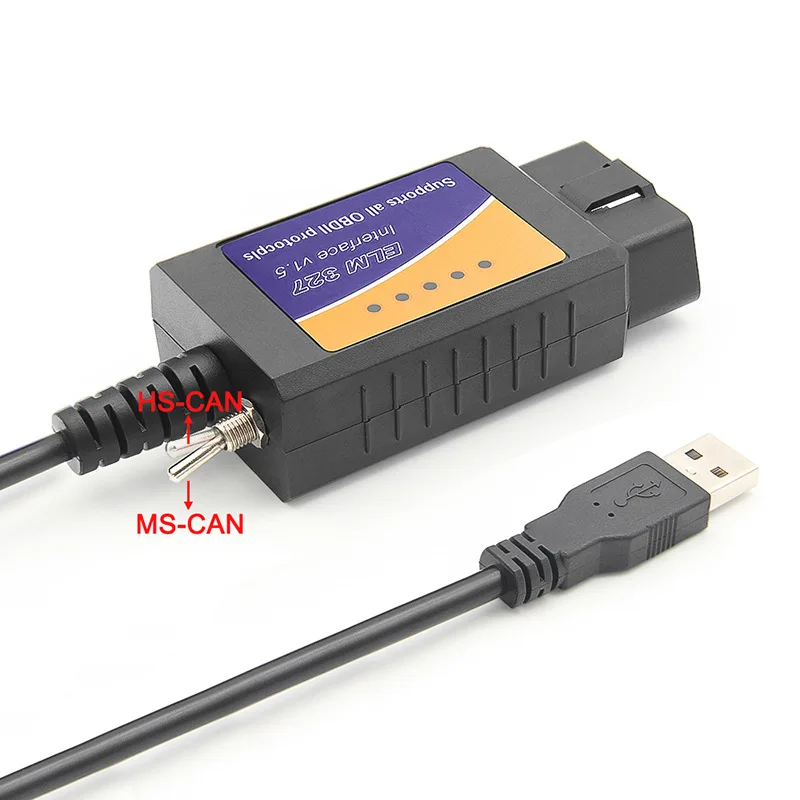

Switch position one: HS CAN – Occupies pins 6 and 14



Switch position two: MS CAN – Occupies pins 3 and 11







Supported Software:



For FORScan



For Elmconfig(Just support Baud rate:34800,pls check before place order)



For FoCCCus



For FF2



Plus more







Hidden function Support car list:



2006-2016 classical for Focus



2012-2015 new for Focus



2013-2015 for Kuga







Please note that many models (approximately since 2003-2004) are equipped with MS CAN bus, in addition to the regular HS CAN bus. In contrast to HS CAN bus, MS CAN bus is not supported by the stock ELM327 USB With Switch, because MS CAN is a manufacturer-specific solution and located on non-OBD2 pins. This ELM327 has been modified to allow it to implement the MS CAN bus.







ELM327 USB With Switch supports HS CAN from the stock, because for HS CAN completely matches to the OBD2 standards. It occupies pins 6 and 14. MS CAN bus occupies pins 3 and 11.







Supported Vehicles:



Many vehicles that can be addressed using an ELM via an OBDII connector.







Packing List:



1 x USB3.0 USB with switch diagnostic cable



1 x Cd Pack
