New MINI ELM327 Bluetooth4.0 OBD2 Automobile diagnosis equipment PIC25k80 Chip For Android Apple

This Product Is Aimed at Domestic Individual Retail Buyers. If You Do Not Operate for Your Own Reasons Or Cannot Use Your Own Model, You Cannot Return the Product for Refund. Please Consult the Seller before Purchasing, Carefully and Blindly Place an Order for Selfie, thank You for Your Cooperation.

Mini OBD2 Bluetooth 4.0 Scanner for Multi-brands CAN-BUS as same as ELM327 Bluetooth 4.0. Supports All OBD2 Protocol works on IOS, Android, Symbian, Windows, used to read diagnostic trouble codes, both generic and manufacturer-specific, and display your meaning (over 3000 generic code definitions in the database).

Mini OBD2 Bluetooth 4.0 Scanner for Multi-brands CAN-BUS as same as ELM327 Bluetooth 4.0.

Top 5 Reasons To Get Mini OBD2 Bluetooth 4.0 Scanner:

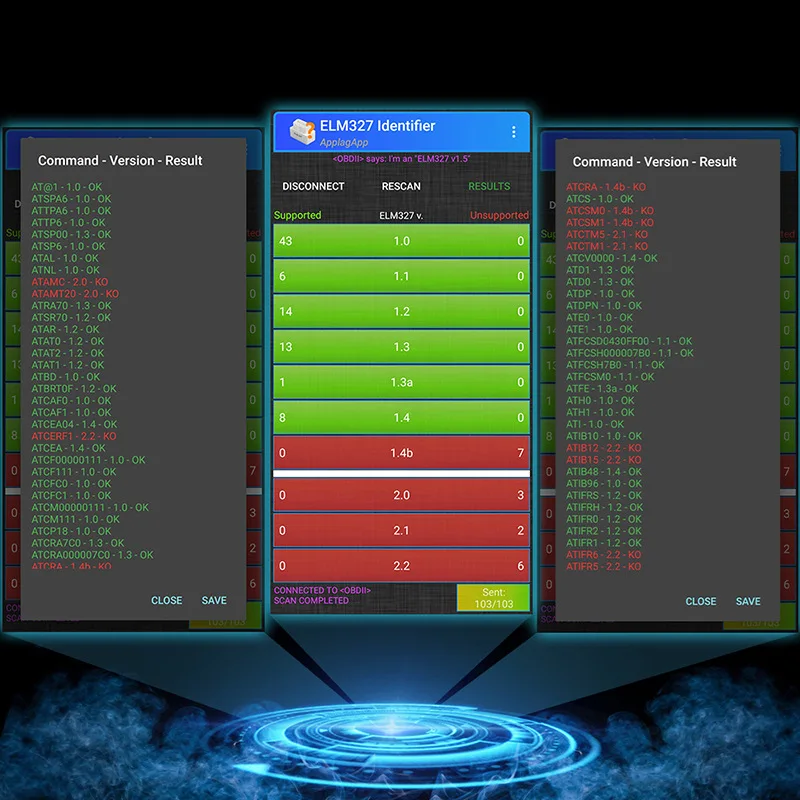

1. Software Version: V2.1 (depending on software)
2. Hardware Version: V1.5
3. Works with all OBD-II compliant vehicles
4. Wireless (Bluetooth)
5. Support Four operating platforms (IOS, Android, Symbian, Windows)

Supported protocols:
1.SAE J1850 PWM (41.6Kbaud)
2.SAE J1850 VPW (10.4Kbaud)
3.ISO9141-2 (5 baud init, 10.4 kbaud)
4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5.ISO14230-4 KWP (fast init, 10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
8.ISO15765-4 CAN (11bit ID, 250 Kbaud)
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)

Mini OBD2 Bluetooth 4.0 Scanner Functions:

1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2: Clear trouble codes and turn off the MIL (“Check Engine” light)
3: Display current sensor data, including:
4: Engine RPM
5: Calculated Load Value
6: Coolant Temperature
7: Fuel System Status
8: Vehicle Speed
9: Short Term Fuel Trim
10: Long Term Fuel Trim
11: Intake Manifold Pressure
12: Timing Advance
13: Intake Air Temperature
14: Air Flow Rate
15: Absolute Throttle Position
16: Oxygen sensor voltages / associated short term fuel trims
17: Fuel System status
18: Fuel Pressure
19: Many others

Mini OBD2 Bluetooth 4.0 Scanner Specifications:

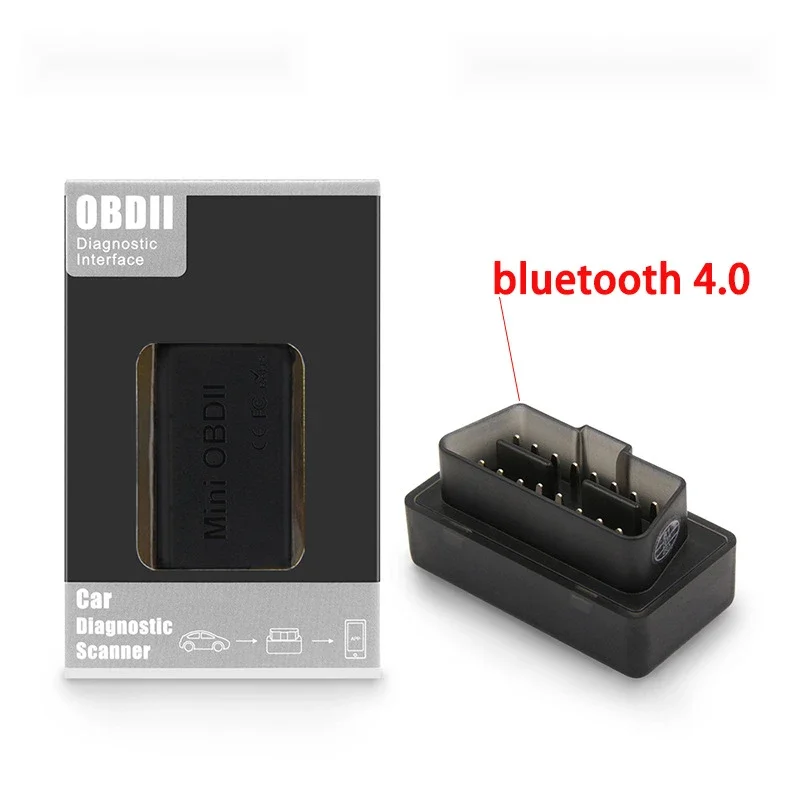

Communication: Bluetooth 4.0

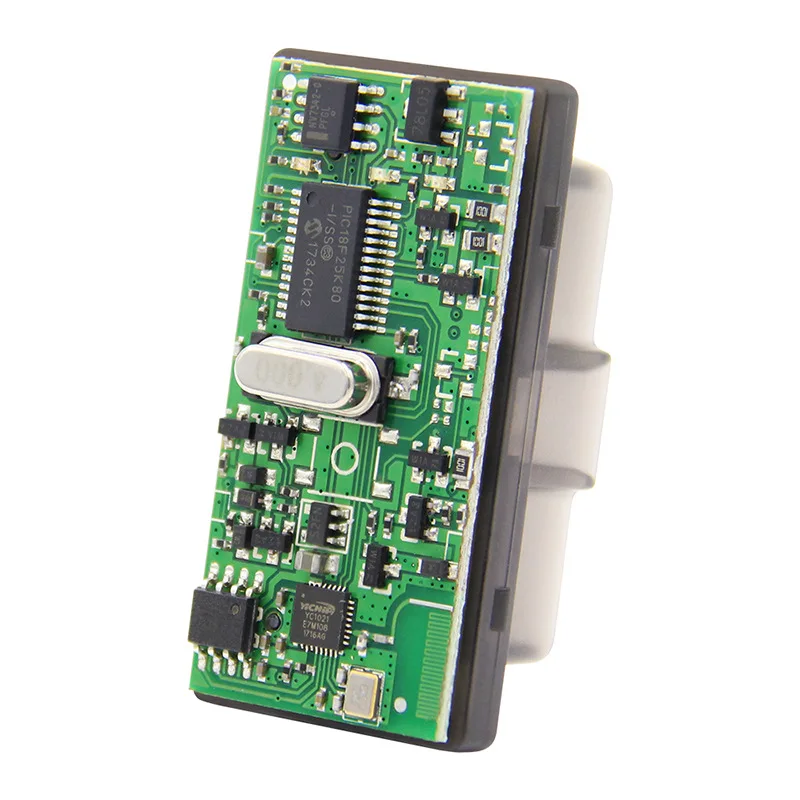

Master Chip: PICI8F25K80
Support System: IOS, Android, Symbian, Windows
Working Voltage: 9v ~ 16v
Working Current: 35mA
Standby Current: 25mA
Operating temperature: -40 ℃ ~ 85 ℃
Working Humidity: less than 60%
Size: 43mm * 25mm * 30mm

Compatible systems:
Software support platform: Windows XP, Windows 7/8, IOS, Android, Symbian.

Compatible software:
Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.

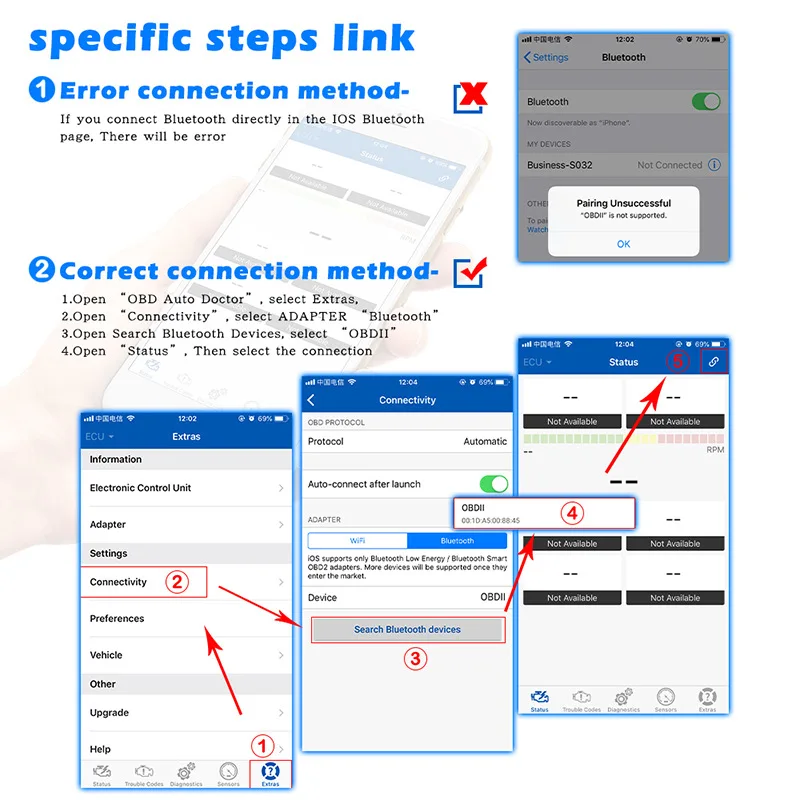

IOS: Auto Doctor, Mini OBDII
Android: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.
Symbian: OBDScope

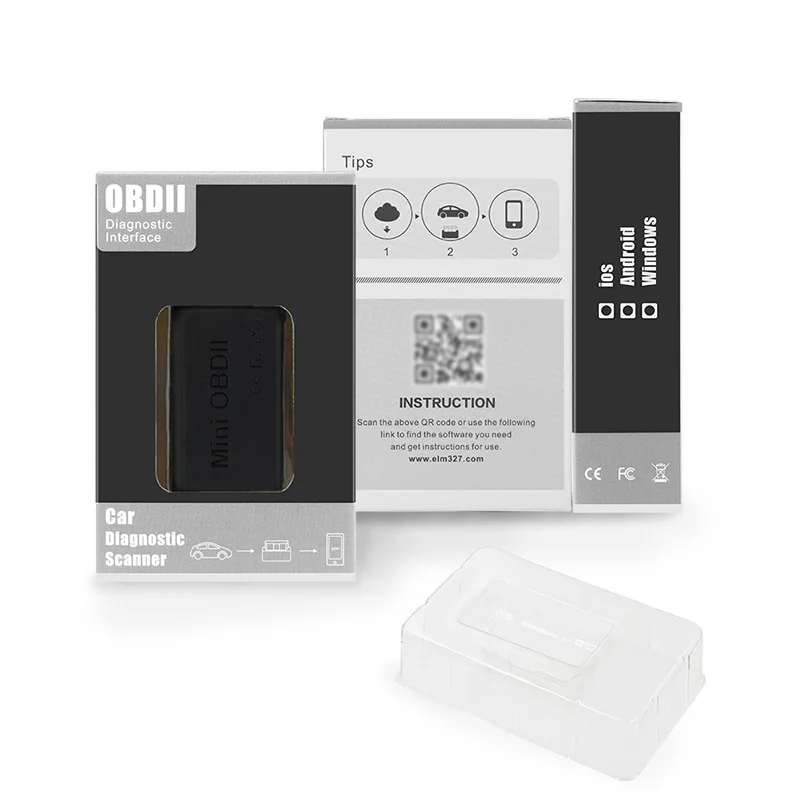

Package List:
1PC X mini OBD2 Bluetooth 4.0
1pc x Box
